JW Speaker: 8630 LED Headlight PAR46 Ring (SET)
JW Speaker: 8630 LED Headlight PAR46 Ring (SET)
Product Overview

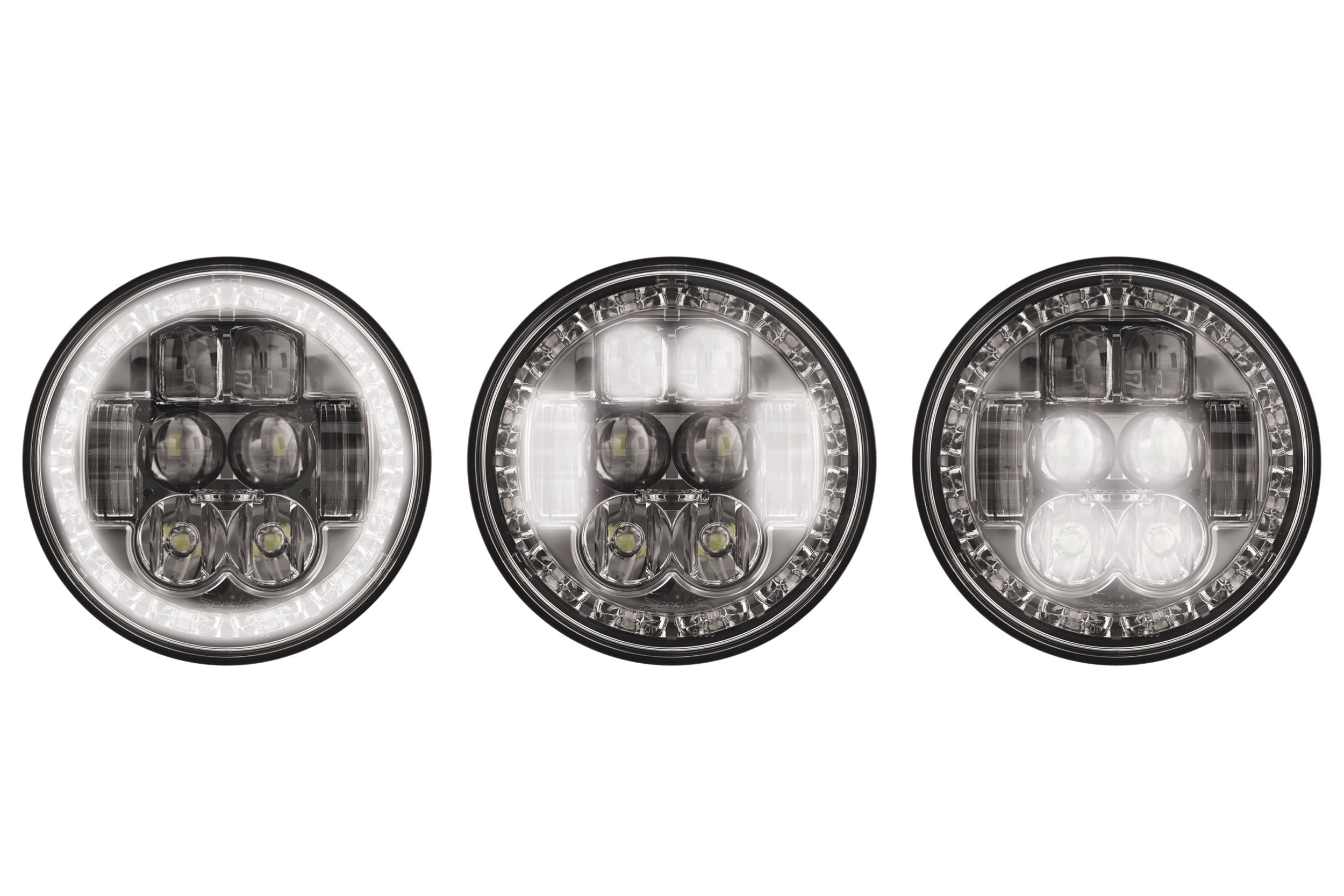

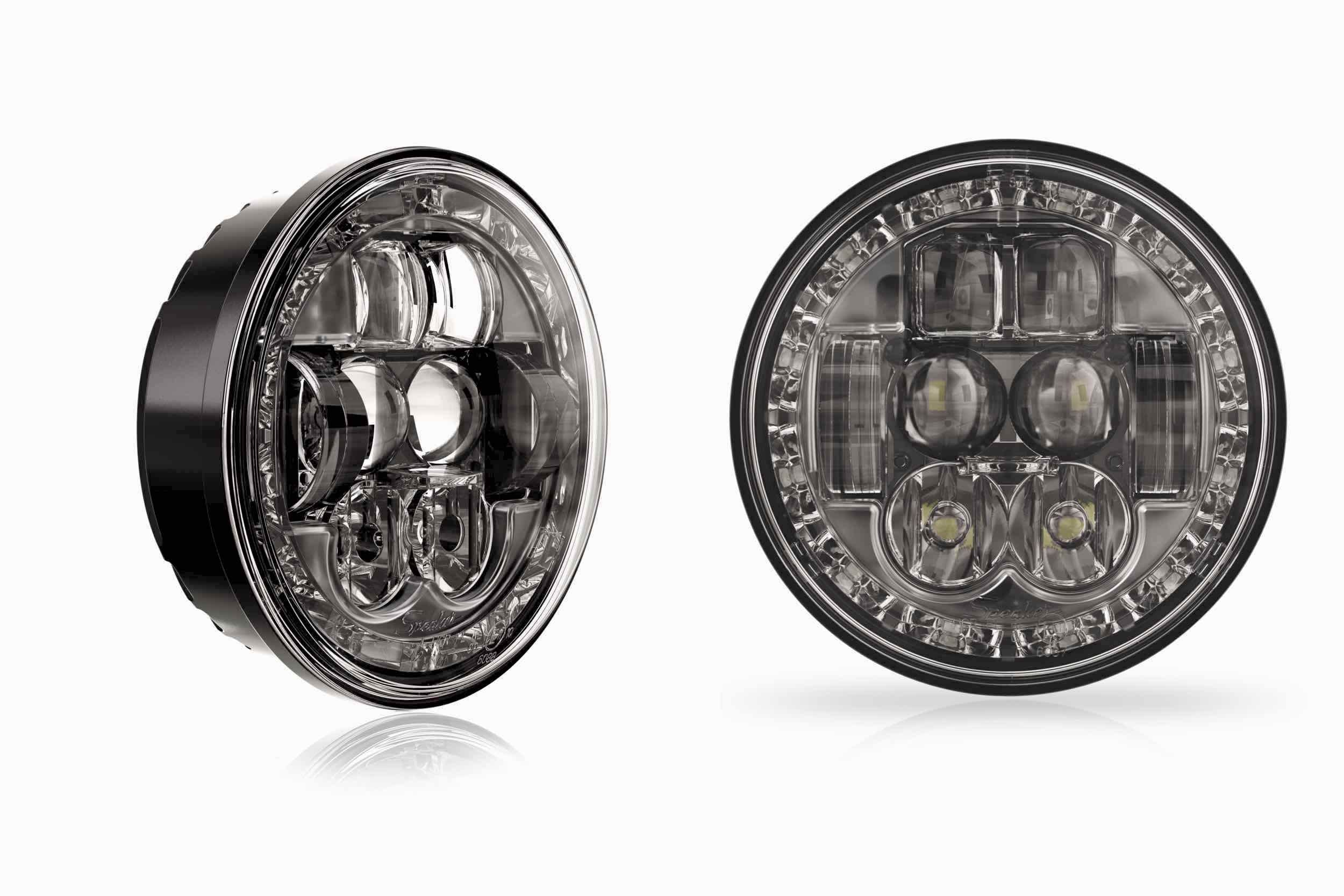

Designed for OEMs and aftermarket customers alike, the Model 8630 Evolution offers an upgraded replacement solution for 5.75in (PAR46) sealed beam headlights. Using high-quality LEDs to provide superior output levels, the Model 8630 Evolution delivers improved performance over our original Model 8630 LED headlight. This unique-looking headlight features high and low beam, as well as a daytime running light (DRL) & front position (FP) functions. Features: Combined high and low beam functions, Newer design boasts a 50% increase in high beam intensity, Easy plug and play installation with Delphi wire connector, Front position and DRL functions utilize a new outer ring at high intensities, ECE versions (not for use in the U.S.) feature DRL & FP functions.
What's Included
- HEADLIGHT: 1x JW Speaker 8630 Evo LED

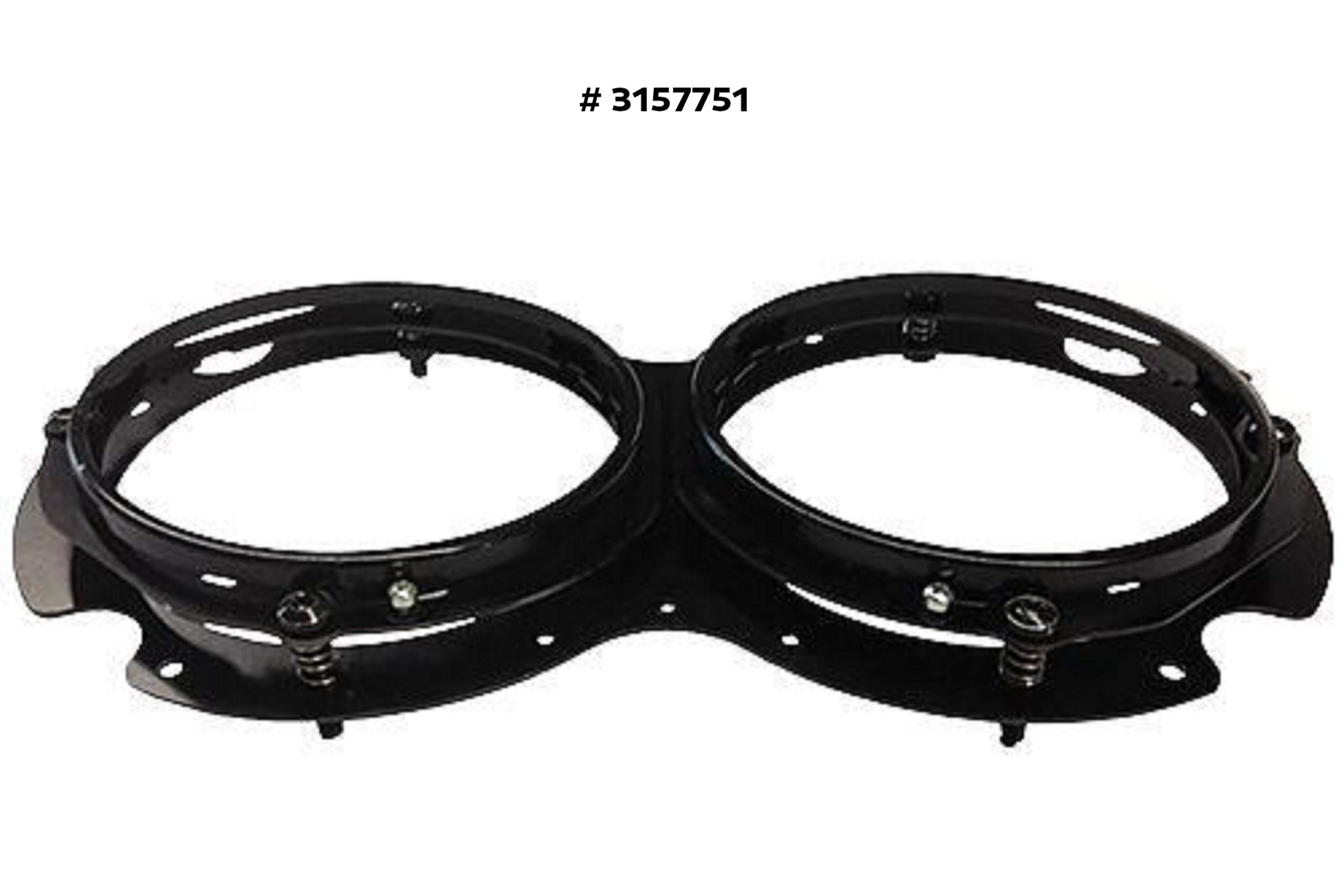

- OPTIONAL MOUNTING RING: 1x JW Speaker PN 8200001
- WARRANTY: Lifetime Limited
- OTHER: Instruction Card + JW Speaker Sticker

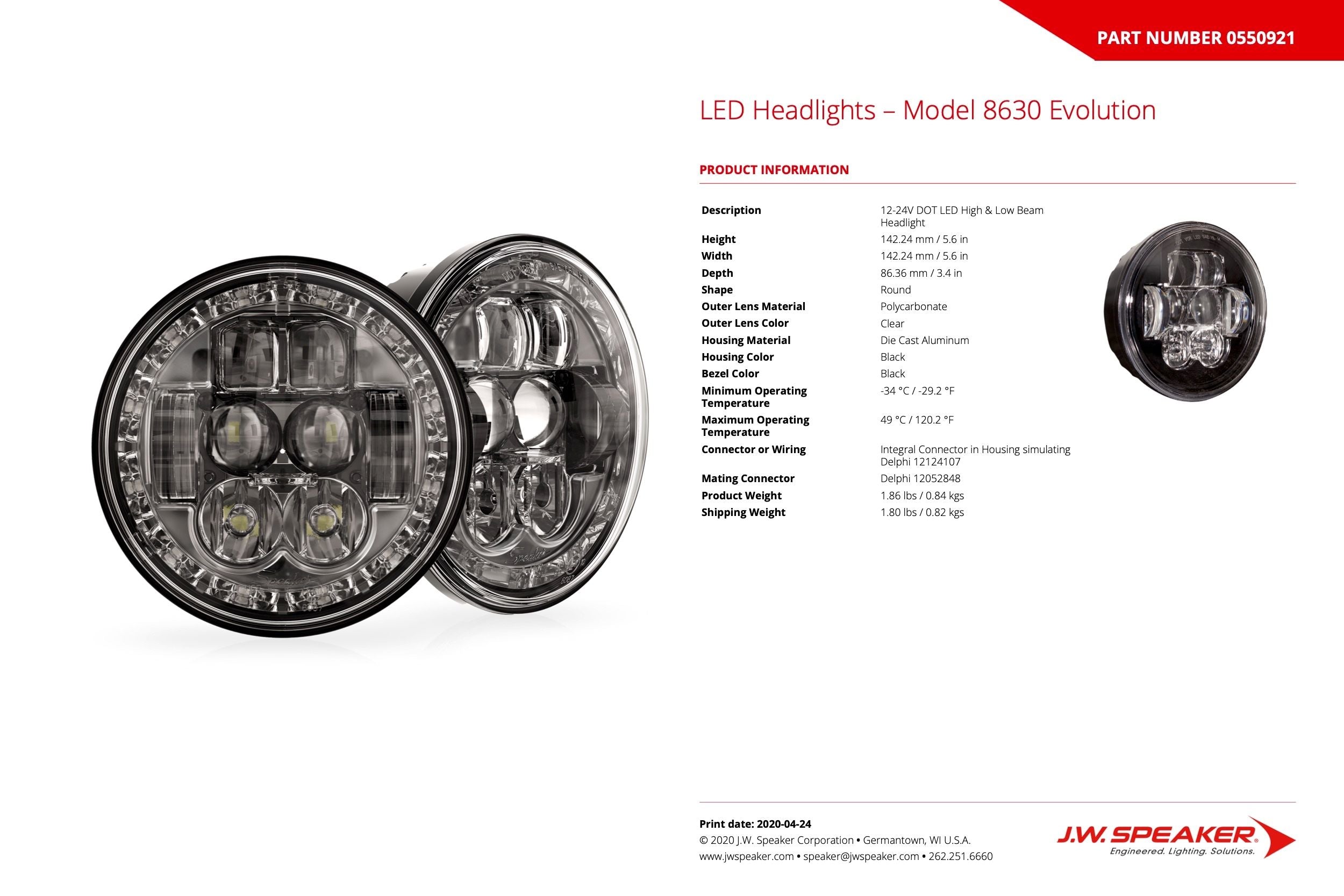

Technical Specifications
- Height: 142.24 mm / 5.6 in
- Width: 142.24 mm / 5.6 in
- Depth: 86.36 mm / 3.4 in
- Shape: Round
- Outer Lens Material: Polycarbonate
- Outer Lens Color: Clear
- Housing Material: Die Cast Aluminum
- Housing Color: Black
- Bezel Color: Black
- Minimum Operating Temperature: -34 degC / -29.2 degF
Vehicle Compatibility
- #N/A
Shipping Details
- Shipping weight: 2.1 lb
- Package dimensions: 12.08 × 10.08 × 5.14 in
DOT compliant: Yes
California Proposition 65 warning: Yes
